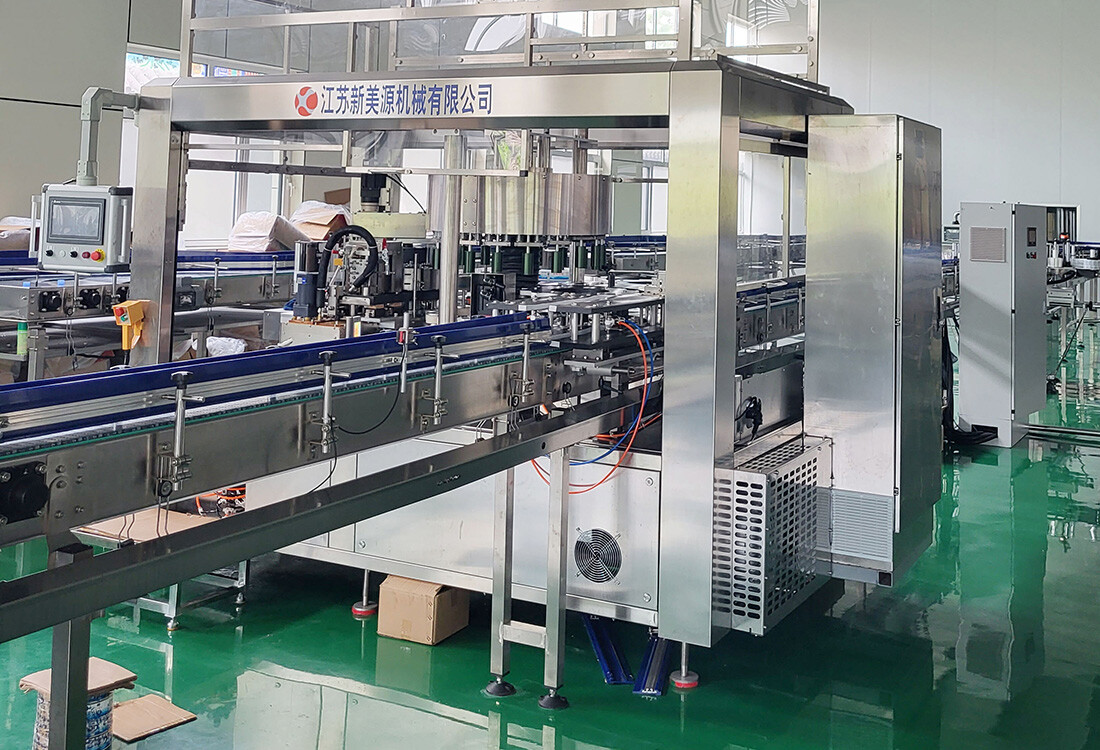

Product Introduction

This machine is suitable for continuous label pasting, using local adhesive coating method, with low adhesive consumption and low operating cost. Suitable for circular and cylindrical containers such as plastic bottles, glass bottles, and metal containers in industries such as washing, beverages, mineral water, and food. The bottle body is labeled with OPP film and other circumferential labels. Due to the use of non shrink materials, the label printing pattern will not deform, ensuring the beauty of product packaging and greatly reducing packaging material costs

Product Features

1. It can be connected to the filling line for production, greatly improving production speed and saving production time

2. Sixteen workstation design, with bottles entering and exiting in a straight line.

3. Intelligent label missing alarm function.

4. Intelligent correction function ensures that labeling errors are controlled within ± 1mm.

5. Independently developed intelligent program, no need to stop production for missing bottles, automatic operation for incoming bottles, avoiding frequent start-up and damage to equipment

6. Adopting Schneider imported servo motors and Siemens PLC control, the operation is simple and smooth.

7. Synchronize the gear rotation system and use screws and star wheels to enter and exit the bottle, ensuring smooth and stable product entry and exit during high-speed operation.

8. The label conveying part includes the label station, constant tension control, correction mechanism, traction mechanism, label suction hub (cutting), labeling hub, and adhesive coating mechanism.

9. The bottle pressing head is electrically adjustable, and the height of the product can be changed through the human-machine interface for easy adjustment.

10. Design of safety clutch for bottle entry and exit star wheel, automatic shutdown alarm for stuck bottles.
