Model: DXGF50-50-12
Brand: Wellspring Machinery

Product Description
Service

Carbonated soft drink/water/beverage filling machine is specially designed for small to medium scale production of both still and carbonated soft drinks such as coca cola, spirit, soda water, etc in PET bottles ranging in size from 0.2 to 2 liters, integrating rising, filling and capping into one.

Complete Carbonated Drinks Filling Line Includes:

Water purification system >> Blending system >> Rinsing filling sealing machine >> Labeling and packing machine

We can offer the complete plant, Here we mainly to introduce the main system --- Auto rinsing filling sealing machine

Technical parameters:

Model:	DXGF50-50-12
Capacity:	18000 B/H
Bottle height:	150-330 mm
Bottle diameter:	50-95 mm
Bottle mouth diameter:	26-40 mm
Bottle type:	PET bottle
Cap type:	Flat cap
Material of the water dispenser:	Poly tetra fluoroethylene
Sterilizing heads:	70
Sterilizing time:	over 2 seconds
Rinsing heads:	50
Rinsing time:	over 2 seconds
Filling heads:	50
Filling temperature:	normal temperature
Filling pressure:	0.2-0.4 Mpa
Flow velocity of the valve:	120-150 ml/s
Filling valve material:	SUS316
Filling precision:	±1 ml (After installing weighing system)
Product reservoir tank:	SUS316
Capping heads:	15
Capping torque:	0.6-2.8 Nm (adjustable)
Main motor power:	7.5 kW AC 380V 50Hz IP55
Installation power:	10 kW
Power supply:	380V, 50HZ
Consumption of compressed air:	8 m³/min (0.7 MPa/H)
Consumption of rinsing water:	0.4 m³/min (0.2-0.25 Mpa)
Co2 pressure	0.35 Mpa
Co2 consumption	10m³/h
Dimension:	598041602700 mm
Weight:	10000 Kg
Working condition:	Humidity: 30-80% no condensation
	Lowest temperature: 5℃
	Highest temperature: 40℃
	Altitude: below 200 m

Main Features

1) Simple structure ,easy in installation and maintation
2) Adopting advanced world famous brand components such as MITSUBISHI, SCHNEIDER.....
3) Easy to change for different bottle shape as long as same bottle neck size
4) Seperate electricity control box, with PLC program control and touch screen operation
5) Equipped with on-line cap sterilizing machine, avoid secondary pollution caused by hand
6) Automatic oil adding system

Detailed Images

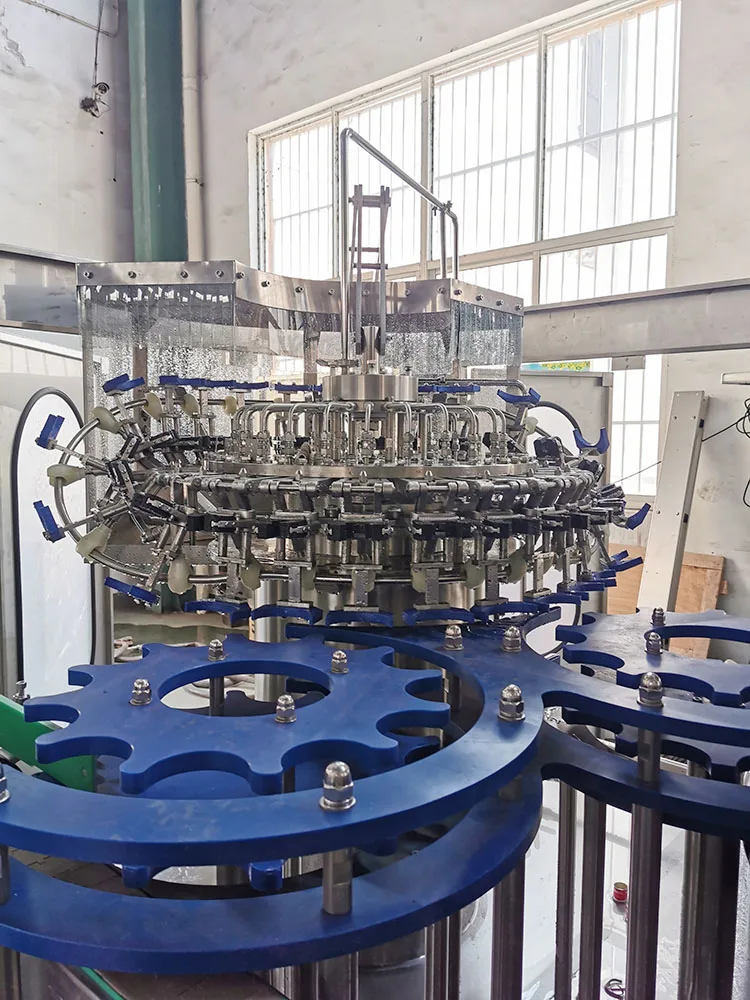

Washing Parts

1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.

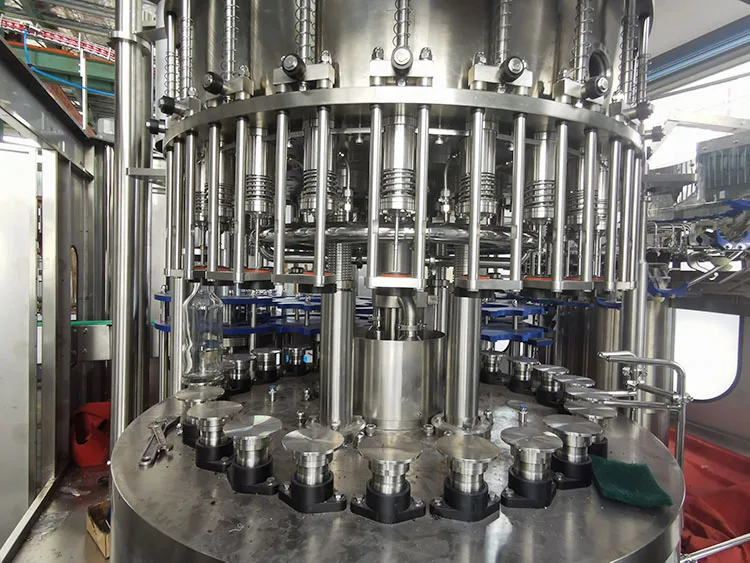

Filling Part

1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is cold filling,temperature 4℃.
4). Filling valve manufactured by SUS304.
5). The filling valve structure design is reasonable, the filling quantity is accurate.

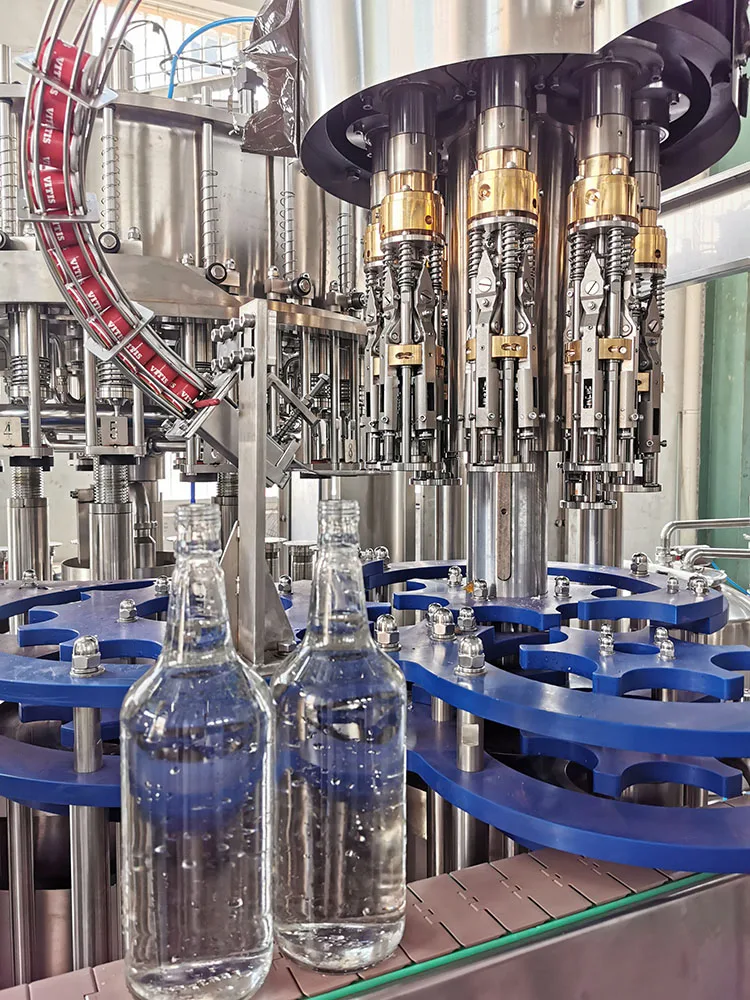

Capping Parts

1). Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2) .All 304 stainless steel construction
3). No bottle no capping
4). Automatic stop when lack of bottle
5). Capping effect is stable and reliable ,Defective rate ≤0.2% .

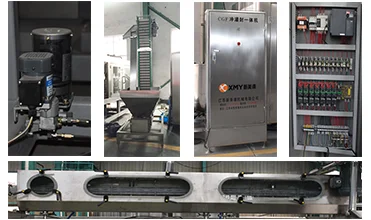

Other Features

1). Automatic oiling machine
2).Automatic cap loading machine
3).Separate electric carinet
4).International brands electrical component
5).On-line cap sterilzing machine, avoid secondary pollution caused by hand, make it fully automatical

1.Pre-salve service
1). Provide professional suggestions, make proposal and best solution to customers.
2). Design the layout of machines according to customer's factory size.
3). Welcome to visit facotry anytime.

2.After-sales service
1). Installation & debug service, training service. After machine arraive customer's factory, professional engineer(1-2 people) will go to customer's factory to install the machine,debug and provide training service until you can operate the machine well and could adjust the process and treat different failures. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2). Quick response within 24 hours .
3). 12 months guarantee , 1 years enough spare parts,and life-long technical support.
4). All business information will be confidential to any third party.
