Material: |
|
Capacity: |
|
Control: |
|
Filling method: |
|
Power: |
|
Beer filling machine includes:
Water purification system >> Blending system >> Rinsing filling sealing machine >> Labeling and packing machine
We can offer the complete plant, Here we mainly to introduce the main system --- Auto rinsing filling sealing machine
Parameters
Model: | WGF50-50-12 |
Actual capacity: | 24000 B/H @ 500ml (steady and no vibration) |
Bottle height: | 120-310 mm |
Bottle diameter: | 50-96 mm |
Bottle mouth diameter: | 26-40 mm |
Bottle type: | Glass bottle |
Cap type: | Plastic/metal cap |
Rinsing heads: | 50 |
Rinsing time: | over 2 seconds |
Filling heads: | 50 |
Filling temperature: | normal temperature |
Filling pressure: | 0.2-0.4 Mpa |
Filling valve: | SUS304 (high temperature resistance) |
Capping heads: | 12 |
Capping torque: | 0.6-2.8 Nm(adjustable) |
Motor power: | 370w(rinsing water pump) + 370w(filling water pump) + 5.5 kw(main motor power) |
Power supply: | 380V, 50Hz, 3 phases, 4 lines |
Actual consumption: | 70-75% |
Consumption of compressed air: | 1 m³/min (0.6MPa/H) |
Consumption of aseptic water: | 4 m³/h (0.2-0.25Mpa), Adjustable |
Dimension: | 3150*2520*2050 mm |
Weight: | 9550 Kg |
Special size can be customized, Just feel free tell us your requirements

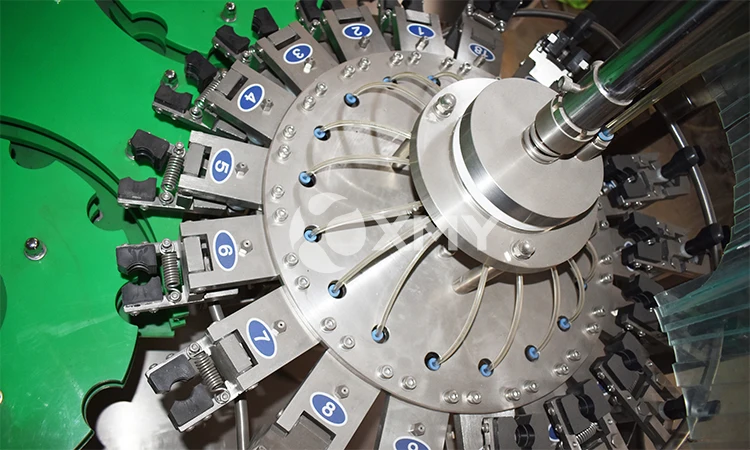

Washing parts: SUS 304, compact structure, convient adjustment, small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently, equipped with water collector to callback rinsed water.

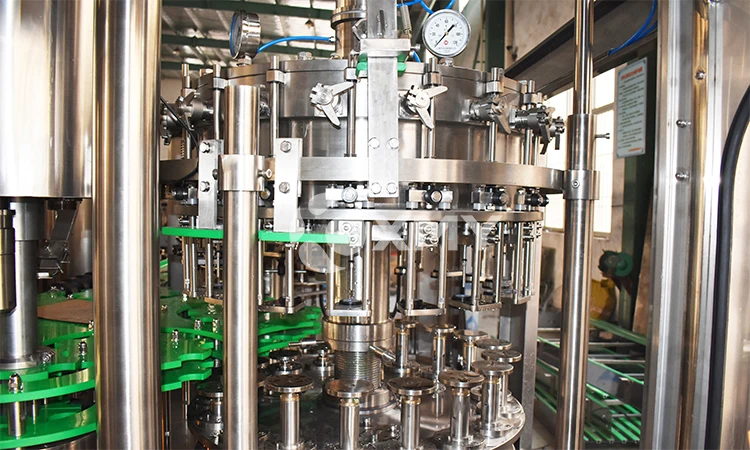

Filling parts: equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The machine obtains advantage of high reliability, high efficiency, high degree automation and easy operation.

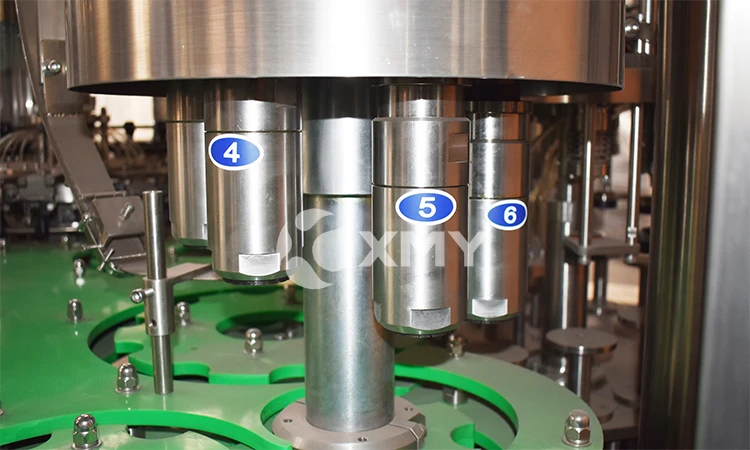

Capping parts: PE screw cap or Aluminum screw cap or Crown cap, etc. is optional according to customers request. Different cap use different capping head.
Products introduction
1.It's a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
2.The capacity has 1200bph, 2500bph, 4000bph, 7000bph, 10000bph, etc for plastic or glass bottle
3. The parts which contact with beverage are made of high quality SUS304 and food-grade rubber.
4.All of electrical system use famous international brand, for example, Mitsubish, Omron brand .
5.The machine has automatic trouble protected device,it will stop automaticlly when there is no bottle or cap or bottle shortage.
6.High reliability, high efficiency, easy to maintain and operate.
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2:What kind of product you supply?
A:Beverage filling machine for water, juice, carbonated beverage and etc; date printer, labeling and packing machine; water treatment system; beverage blending system; PET bottle blowing machine,etc.
Q3: Where is your factory located? How can I visit your factory?
A: We are located in Zhangjiagang city, it is near to Shanghai and Wuxi.You can fly to Shanghai airport or Wuxi airport,we can pick you up from the airport or your hotel.
Welcome to visit us!
Q4:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product,and let us know your request.
Q5 : Can you send engineer to our local place for installation?
A: Yes,if you need, we will arrange engineer for you, to install and debug the machine in your factory, provide the training service to help you master the whole line.
Please let us know your request details, such as fill which liquid, filling speed, bottle volume, bottle type...etc. when you send an inquiry, Thank you in advance.
Contact us anytime, anywhere, if you have any questions or would like to consult product information.
